REAL PEDALS · REAL MILLIMETERS
Know it fits.
Before you buy.
Place real pedals on a real board, wire them with real plugs, and watch the power budget balance — free, in your browser, no account.
0 € · no account · nothing to install

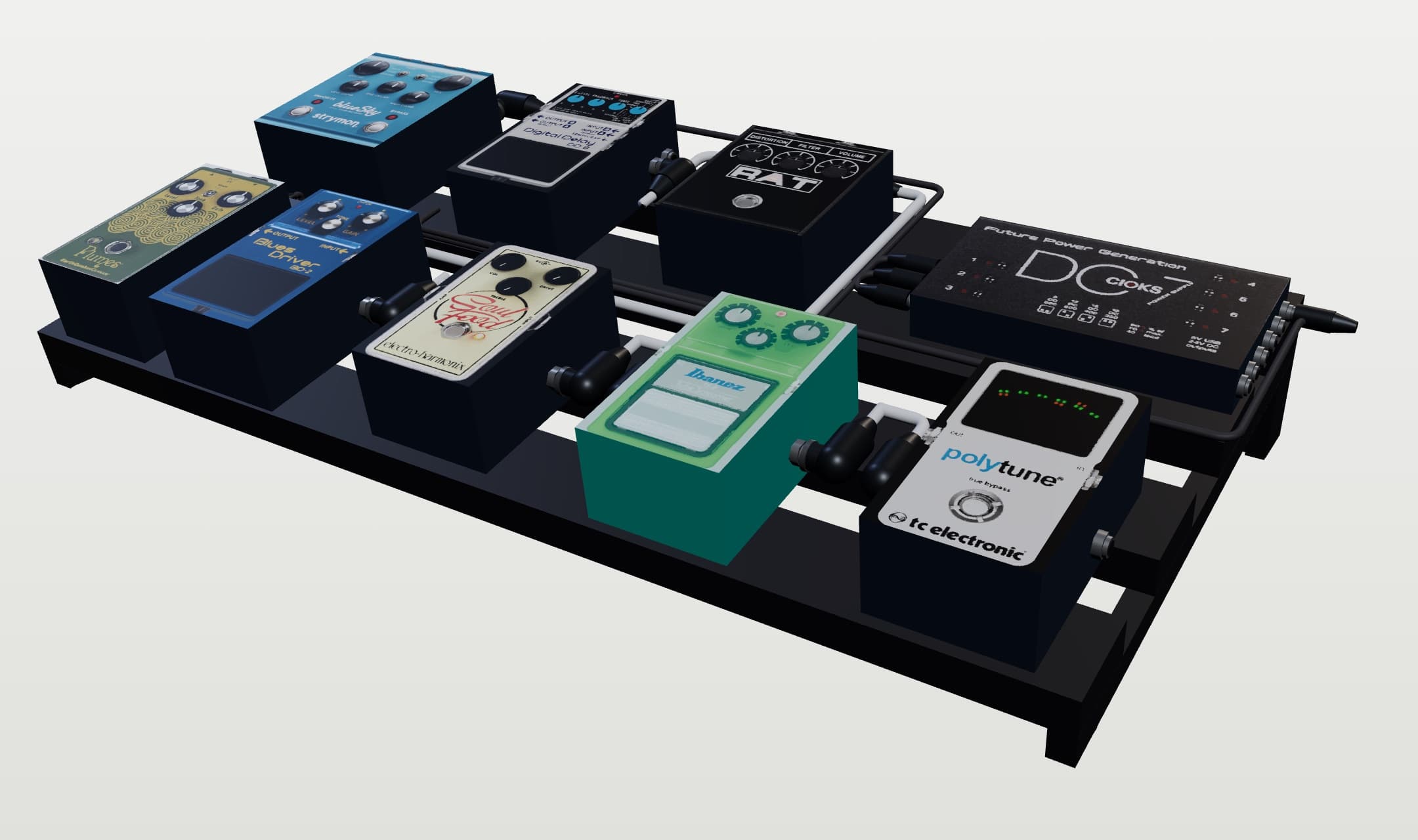

real capture from the planner · 8 pedals · 11 cables · ±2 mm
THREE MOVES, ZERO SURPRISES
From empty board to verified rig.
Pick your board
Real models from real brands — rails, tiers and incline reproduced to the millimeter, not an abstract rectangle.
Place your pedals
9,800+ verified sheets with true footprints, jack positions and original artwork. If it overlaps, you see it instantly.
Wire & verify
Plugs, clearances and the power budget are checked live as you patch — every cable, every milliamp.
FEASIBILITY, LIVE
The board says no
before your wallet does.
Every change re-runs the full check: footprint overlaps, plug-to-plug clearance, voltage and polarity per outlet, total current draw. Mistakes show up on screen — not on delivery day.
- Footprints & overlaps — nothing hides under anything
- Plug clearance — right-angle and pancake jacks need real room
- Power match — voltage, polarity and current per outlet

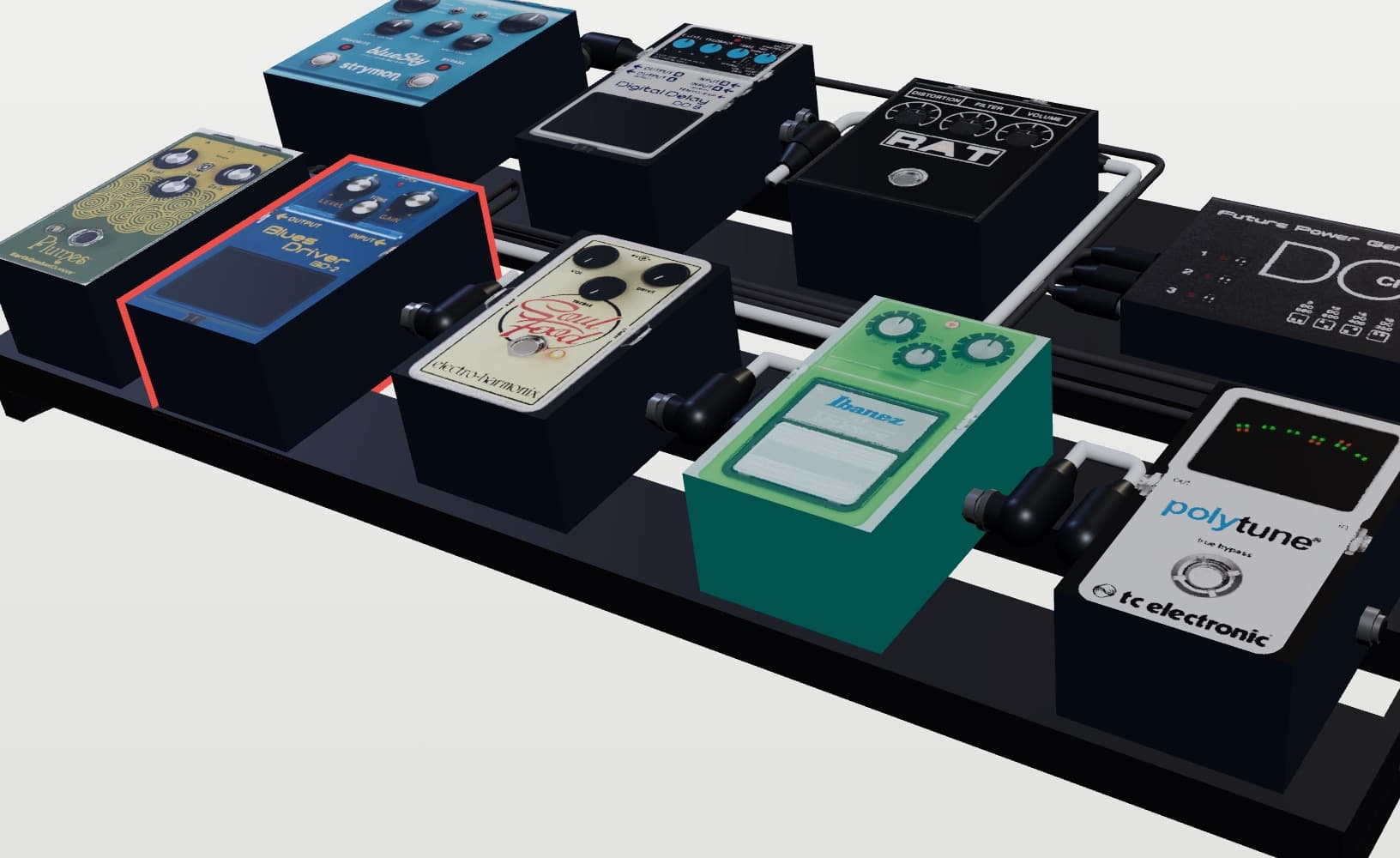

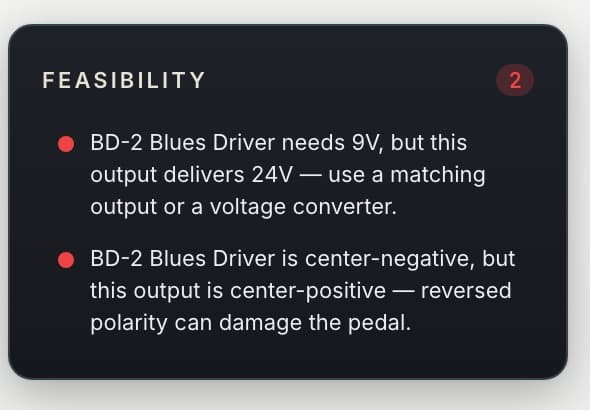

real capture — a BD-2 patched into a 24V outlet: outlined on the board, called out in the panel, caught before checkout
THE CATALOG
Your pedals are already in here.
From boutique overdrives to the classics — each sheet carries measured dimensions, jack layout, power needs and the real artwork. Missing one? Add it from a photo, we verify it.
FREE FOR EVERYONE
No tracking, no account wall.
If rigplanner saved you from buying a board two sizes too small, you can help keep the server running.
rigplanner is in beta — we read every piece of feedback. Tell us what works and what doesn't: contact@rigplanner.app
Your board, verified.
Start placing pedals now — it runs in your browser.
Open the planner0 € · no account · nothing to install
